Countryside tourism project Jonas

General Information

Total area 484,71 m2
Living space 31,65 m2
Built-up area 256,05 m2
Length 14,33 m
Width 15,87 m
Height 8,50 m
Roof inclination 12/25/80°
productProjectWebPrice € 1.890,00
productProjectPrice € 2.100,00
101. Tambour 8,49
102. Cafe - bar 38,51
103. WC 1,85
104. WC 4,26
105. Party room 63,47
106. Room 15,82
107. Room 15,82
108. Bathroom 3,50
109. Corridor 8,20
110. Bathroom 3,50
111. Terrace 28,62
Total area: 192,04

First floor plan

Building rural tourism project Jonas | NPS Projects
201. Corridor - hall 29,41
202. Room 11,85
203. Room 13,17
204. Room 12,98
205. Bedroom 12,38
206. Bedroom 12,08
207. Bedroom 12,57
208. Bathroom 3,06
209. Bathroom 3,35
210. WC 3,06
211. Room 11,98
212. Room 12,04
213. Room 11,82
214. Room 11,82
Total area: 161,57

Second floor plan

Building rural tourism project Jonas | NPS Projects
001. Tambour - corridor 16,88
002. Pantry 5,91
003. Kitchen 15,86
004. Serving room 18,45
005. Room 6,26
006. Hall - staircase 6,50
007. WC 1,96
008. SPA 37,69
009. Sauna 4,40
010. Sauna 4,40
011. Room 9,40
012. Boiler room 7,81
013. Room 6,99
014. Pantry 6,22
015. Pantry 4,72
016. Bathroom 6,28
017. Woodshed 26,59
Total area: 186,32

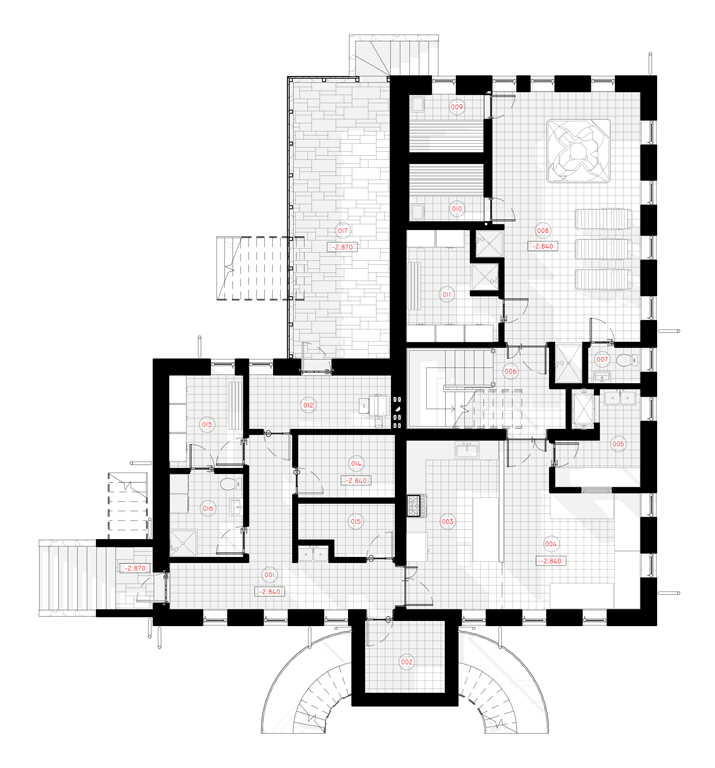

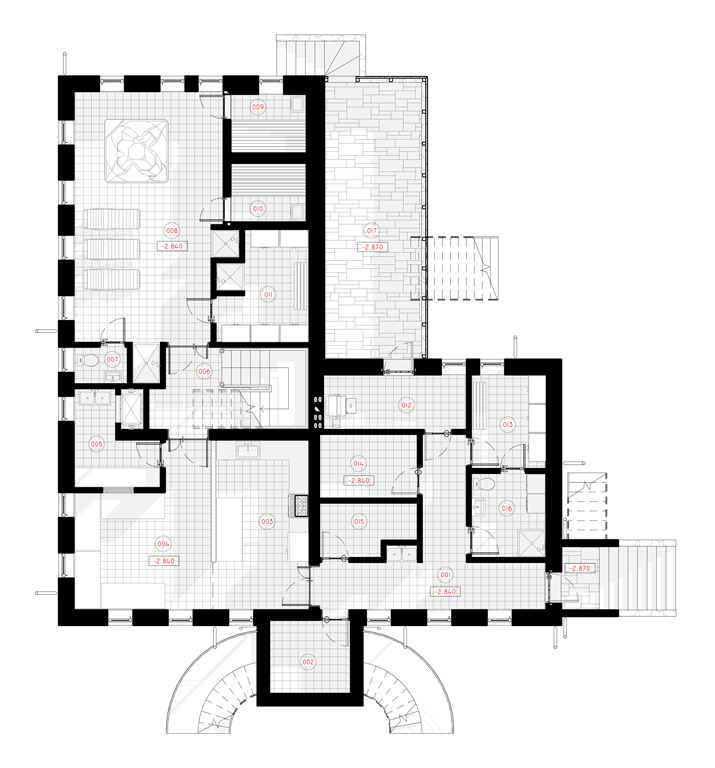

Basement plan

Building rural tourism project Jonas | NPS Projects

productVideo

Other parameters

Number of floors 3
Number of rooms 12
Bathroom no. 9
Usable area 484,71 m2
Terrace 25,62
Energy efficiency estimation 250 €
Price with planning permission 3575 €

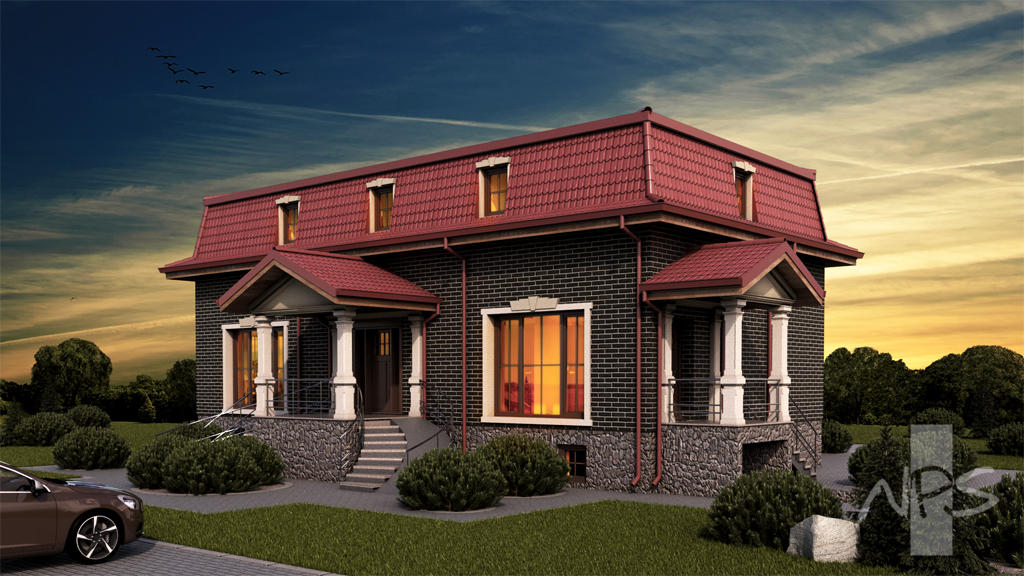

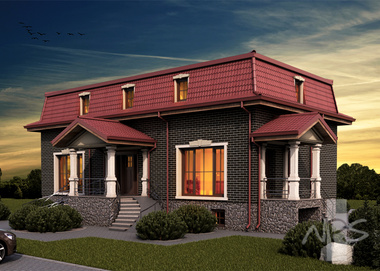

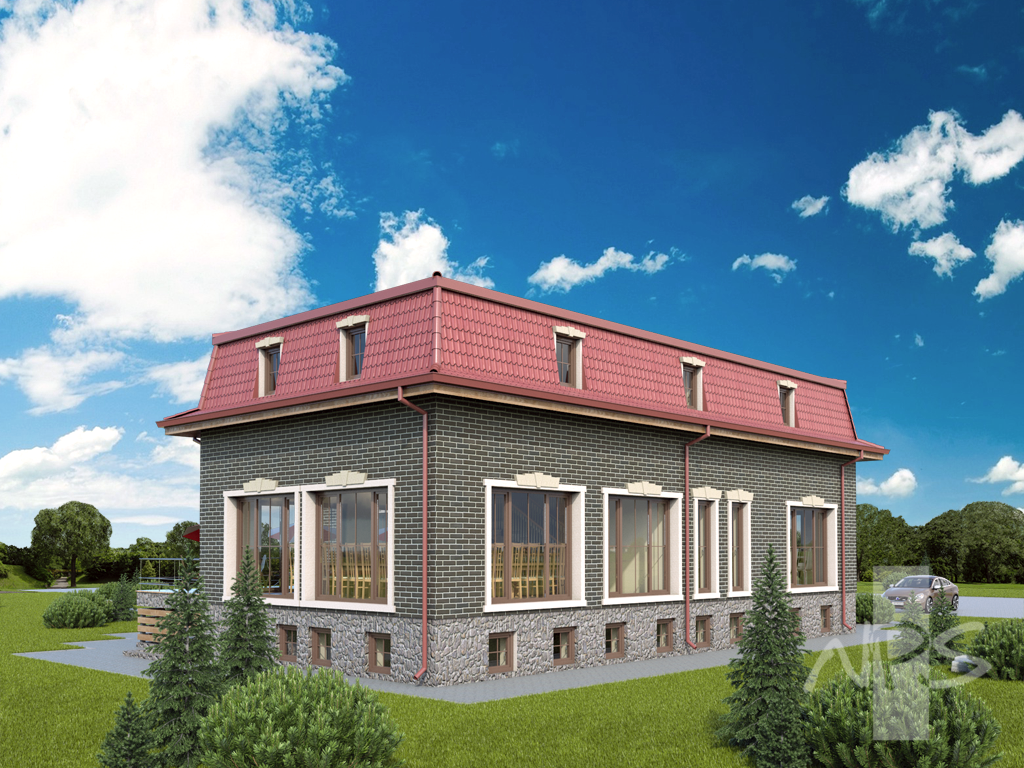

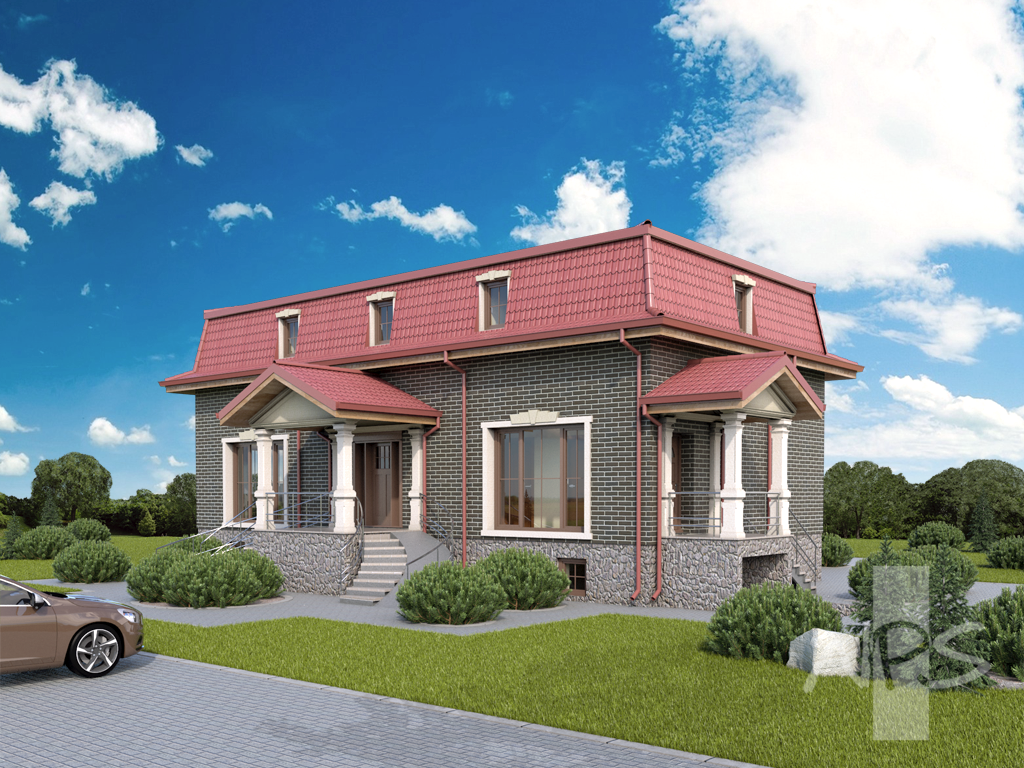

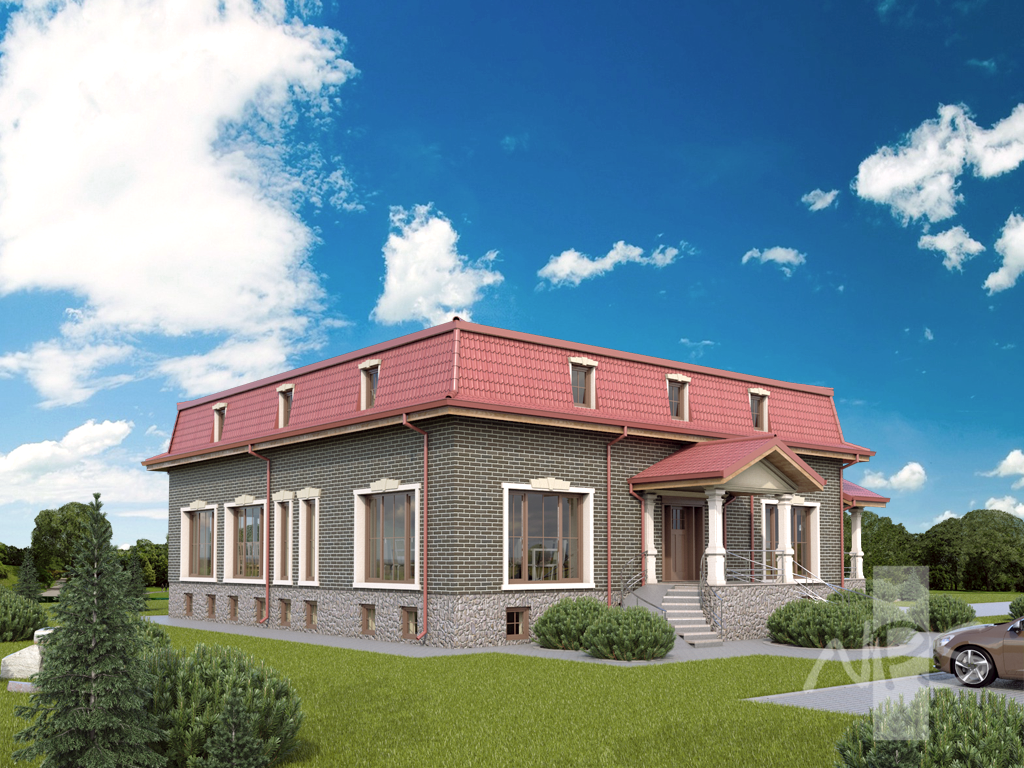

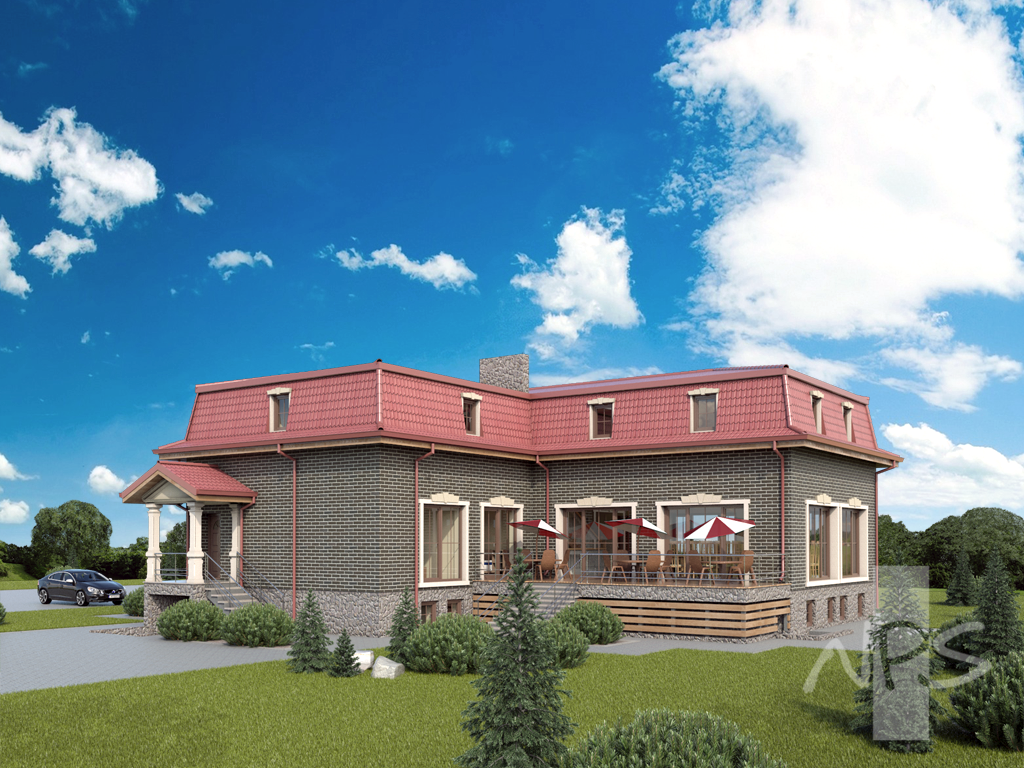

Jonas a single storey country tourism adapted building with mansard and semi-basement under the exclusive four slope roof encases in its space two bathhouses, SPA with jacuzzi, party - conference hall, two motel type rooms, cafe - bar, food preparation premises with auxiliary premises and storage rooms, and also 10 bedrooms, two of which have individual WC's. This multifunctional structure of exceptional and attention drawing architectural expression will definitely will not go unnoticed. Due to the rational layout the general area of just 484.71 m2 was achieved, however everything is ergonomic and convenient. The area of the living premises – 31.65 m2, commercial area – 38.51 m2, woodshed area – 26.59 m2, auxiliary area – 147.59 m2, main area - 266.97 m2, terrace area – 28.62 m2, useful area – 484.71 m2. The house has several convenient entrances, palatial that serves as the main one, utility - dedicated for the kitchen and service personnel, a separate entrance into the motel premises and the entrance from the woodshed to the boiler room. The aforementioned woodshed is set up under the spacious terrace in order to utilize the developed area as rationally as possible. Access to the terrace from the party - conference hall, therefore it can be used to expand the space of events, and during the summer it will act as the outdoor cafe.

The design of the country tourism homestead was prepared according to the currently applicable requirements of hygiene and sanitation and of other relevant normative documents.

"NPS projektai" will design the country tourism homestead, its installations and facilities according to your wishes and desires. We have accumulated our experience in order to help you to accomplish your business dream, we will change and adjust the project according to your individual needs, we will gladly take on to the provision of the individual solutions for your needs, and if needed we will realize and implement everything without difficulties: FROM IDEA TO THE KEY!

The structure of the building is very simple and non complex, without large spans and complex solutions. Foundation, wall, roof, ceiling and other structures, as well as the construction finishing materials that are used for them can be adjusted with respect to the trends that are prevalent in the market, so that in this way the achieved construction and maintenance costs would be as low as possible.
